Gatekeeper Ltd.

Light Duty Rolling Door Opener

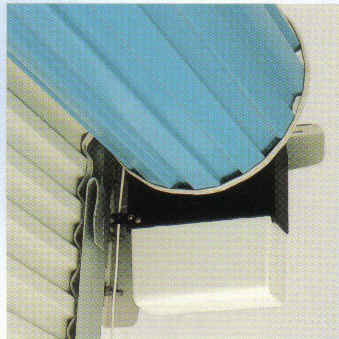

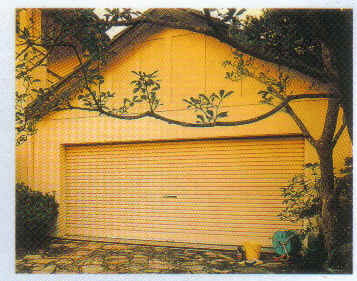

The SJ30 Light Duty rolling door opener is designed to suit most types of residential rolling garage doors equiped with balance spring settings. It may be fitted to most single or double width doors up to 3 meters high and 5.5 meters wide. It offers convenience, safety and security for your garage.

Technical Data
Power Supply	220V , 50Hz
Rated Power	100W
Rated Load	25Kg
Roller Diameter	270mm
Roller Revolution	3.5rpm
Lift Height	3m
Motor Weight	7.5 Kg

Features

Remote Control - Two remote transmitters operate from 30-50 meters
Automatic Reversing system - Stops and reverses on obstruction
Courtesy Light - Light stays on for 3 minutes then turns off automatically
Easy Manual Disengagement Pull Cord - Just pull on cord once to disengage opener
Safety Infrared beam - Additional safety precaution
Open and Close Buttons - Built in the unit to help you set the open and close limit positions more quickly
Auto Run time - Turns off opener after 60 seconds if left running
Color Coded installation - Quick and Easy to install
