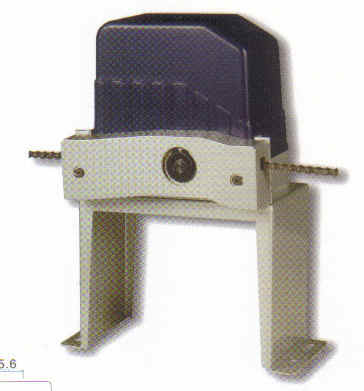

SKC600DC Gatekeeper Sliding Gate Opener / Operator

Gatekeeper Ltd.



AC/DC Powered Sliding Gate Opener / Operator

With Integrated Controller,

2 Remote Controls and Chain.

The Gatekeeper, Ltd SKC-600DC Sliding Gate Opener allows you to automate a sliding gate up to1320 lbs. and 50 feet in length (20 ft of chain included, extra chain available).  The SKC-600DC comes equipped with a backup battery which will allow continued operations in the case of power loss.  This model is designed for AC or DC power and therefore is ideal for solar power operation if desired.  Perfect for a commercial building or residential application, this automatic gate opener features a chain-driven,  oil-in-bath heavy duty DC motor for continuous operation.   The weather proof casing and external magnetic limit switches will provide for years of reliable operation.  The SKC-600DC features the following interfaces: single-button, three-position switch, infrared safety beam, magnetic loop detector (Free Open);  and supports up to 100 Remotes (2 included) with RF rolling code technology to prevent unauthorized entry.   The SKC-600DC also features: auto-close function, manual key release for emergencies, self-locking and reversible gear motor, and overheat & over-current protection.  There is a  2 year limited warranty on the motor,  and 1 year limited warranty on electrical parts.  Additional options: Keypad & Keypad Stand, Photoelectric Safety Beam, Additional Remote Controls, and Magnetic Loop Detector sold separately.

  • Supports sliding gates up to 50 ft. span and 650lbs., 2 Remotes Included
  • Battery Backup Heavy Duty DC Motor with AC 110V Power Supply Solar Power compatible
  • Magnetic Limit Switches for easy adjustment
  • Keypad Interface, Push button interface, Reliable steel geared system
  • UL 325 Safety Auto Reverse, auto close feature

Features:

This is a chain driven, continuous duty, oil-in-bath heavy duty gate opener! Weather Proof Casing!
Supports Solar Power, and contains Battery Backup!
Contains external magnetic limit switches for years of reliable operation!



  • Sliding Gate Opener opens gates up to 650 lbs
  • Keypad Interface
  • Single Button Interface
  • Three Position Switch Interface
  • Infrared Safety Beam Interface
  • Magnetic Loop Detector (Free Open) Interface
  • Supports up to 100 Remotes, 2 included.
  • RF Rolling Code, prevents thieves.
  • Auto-Close Feature
  • Manual Key Release for Emergencies
  • Self-locking and reversible gear motor
  • Quality painted body
  • Water-proof design
  • Extremely quiet Overheat and over-current protection
  • Contains magnetic limit switches
  • Adjustable output thrust
  • Built-in micro-switches for gate opening arrest
  • Relay Coil Voltage: DC 12V, SCM power supply: DC 5V
  • Easy installation, full fitting accessories are provided with motor kits
  • Adjustable auto-close child safety obstruction sensitivity and Single gate operable sequence.
  • Power Supply: AC 110V or DC
  • Accepts Solar Power Input
  • Battery Backup for Emergencies
  • Max. power 735W
  • Electronic Lock: DC 12V 2A
  • Operating Time: 20 seconds ~ 100 seconds
  • Control panel with interface for photocells, loop detector, IC card reader & alarm lamp, and Keypad
  • Time-Delay protection
  • 2 year limited warranty on motor
  • 1 year limited warranty on manual & electric parts
  • Enclosed cover for added protection

Additional Options sold separately:

  • Keypad & Keypad Stand
  • Photoelectric Safety Beam
  • Additional Remote Controls
  • Magnetic Loop Detector




Safety First:

Check our competition, many do not meet some or all of the UL-325 Safety standards.

The CPSC reports that from 1990-1998 an estimated 6,800 injuries (or 755 injuries per year) were related to automatic gates. Among those incidents, there were 28 automatic gate-related deaths during the same time period, involving victims from 17 months to 60 years old.

UL325 Fourth Edition requires that automatic gate openers not only stop when they encounter an obstruction, but also reverse to prevent compression or strangulation injuries. Make sure the gate opener you purchase includes both of these safety features…Gatekeeper does.

SKC500DC Series Sliding Gate Openers
Technical Data
Model SKR400E SKR500E SKC600DC SKR500DC
Power Supply 220-240V, 50/60Hz 110-120V, 60Hz DC Solar / Battery (Included)
Motor Speed 1250 rpm 1500 rpm
Rated Power 160W 190W
Output torque 7Nm 7Nm
Max. Gate Weight 400 Kg 300 Kg
Opening Speed 10m/min 12m/min 16m/min
Output Wheel Gear Wheel 19T Gear Wheel 24T Chain Wheel 16T Gear Wheel 19T
Working Temperature -10 C to 40 C




Reliability:

Your new Gatekeeper brand Gate Opener will work reliably for years to come, this is a VERY heavy duty high quality opener, not like some of the cheaper models available online. Gatekeeper is one of the leading manufacturers of Gate Openers in the world, they provide a full one year warranty from manufacturers defects. You know it’s Gatekeeper, so you know it’s quality!

Do You have still have a Question?
Check out the the manufacturers website and Frequently Asked Questions here.

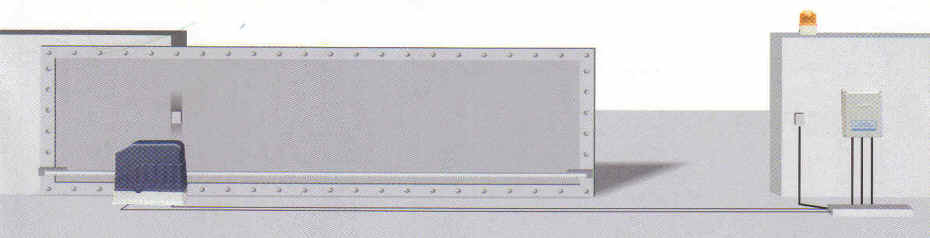

The SK Series Sliding Gate Openers are used to drive sliding gates for residential and industrial applications. The openers operate at high torque and can be fitted with a gear wheel or chain wheel depending on your application. In case of power failure, an emergency release key allows for operating the gate manually.

Features:

  • Chain Drive
  • Self locking electromechanical gear motor
  • Safety obstruction reverse if infrared photocells are installed
  • Overheat and Overload protection
  • Emergency release key in case of power failure
  • Support available for photocells, loop detector, IC card, alarm lamp and remote controller, and keypad

Each gate is different and it is highly unlikely that you will be able to install a gate opener without some level of fabrication. The gate opener includes brackets and assorted hardware, but some welding, cutting or drilling may be required to get it fully installed.

SKC500U Gatekeeper Sliding Gate Opener / Operator



*Packages includes (Brand New In The Box)

  • 2 Remote Transmitters
  • Integrated Control Box
  • Complete Mounting Hardware
  • 20 Feet of Chain

This unit is in new condition and has never been out of the box.

(Alarm Lamp, Keypad, additional chain and Photocells Sold Separately)
