YG Series Swing Gate Openers

yg-1024x330_bullets

Heavy Duty Dual Swing Gate Opener / Operator Automatic Gate

YG-5602 U Dual Swing Gate Opener for USA Market

This kit includes many extras not found in other products.

Includes active IR photocell ($70 value), key switch, button switch, light kit, actuator cabling, 2 Remote Controls and Electronic Lock

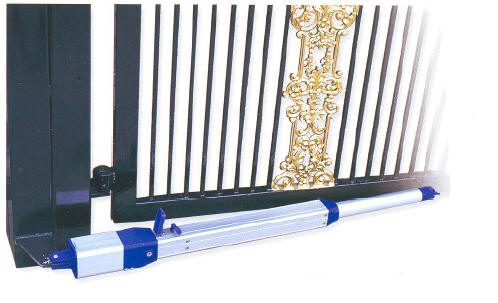

yg56021

Safety First:

Check our competition, many do not meet some or all of the UL-325 Safety standards.

The CPSC reports that from 1990-1998 an estimated 6,800 injuries (or 755 injuries per year) were related to automatic gates. Among those incidents, there were 28 automatic gate-related deaths during the same time period, involving victims from 17 months to 60 years old.

UL325 Fourth Edition requires that automatic gate openers not only stop when they encounter an obstruction, but also reverse to prevent compression or strangulation injuries. Make sure the gate opener you

purchase includes both of these safety features….Gatekeeper does.



Features:

  • Supports gate leafs up to 660b or 12 feet (3.6m)
  • Dual Gate Opener opens 2 leafs 24 feet or 1320lbs
  • Battery Backup for power outages
  • Keypad Interface
  • Single Button Interface
  • Infrared Safety Beam Interface
  • Supports up to 15 Remotes, 2 included.
  • RF Rolling Code, prevents thieves.
  • Auto-Close Feature
  • Solid Steel Lock included
  • Push to Open or Pull to Open Configurable
  • Self Learning Opening / Closing Limit Capability
  • Manual Key Release for Emergencies
  • Self-locking and reversible gear motor
  • Die-cast aluminum and quality painted body
  • Water-proof design
  • Extremely quiet Overheat and over-current protection



  • Adjustable output thrust
  • Built-in micro-switches for gate opening arrest
  • Relay Coil Voltage: DC 12V, SCM power supply: DC 5V
  • Easy installation, full fitting accessories are provided with motor kits
  • Operator can be post mounted inside gate and gate leaf direction can be both inward or outward.
  • Adjustable auto-close child safety obstruction sensitivity and dual gate operable sequence.
  • Power Supply: AC 110V
  • Max. power 735W
  • Electronic Lock: DC 12V 2A
  • Operating Time: 12 seconds ~ 100 seconds
  • Control panel with interface for photocells, loop detector, IC card reader & alarm lamp, and Keypad
  • Weight of Control Box: 4.4. lbs. (2Kg)
  • Time-Delay protection

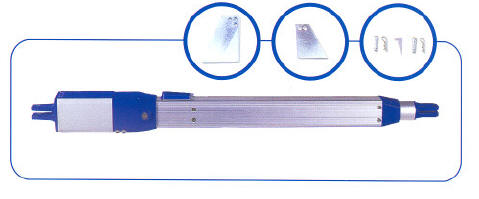

yg56022

YG-5602U Swing Gate Opener / Operator Technical Data

Model YG-5602U
Maximum Gate Length 3.6M / 12 Feet
Operator Linear Speed
No Load (mm/sec)
W/Load(mm/sec) 65Kg
18+/-10% mm/sec15.9mm/sec
Stroke Length 365mm(14.2 in)
Maximum Leaf Swing 120 Degrees
90 Degree Operating Time 10-12 Sec
Operating Current 2A
Motor Power 12V DC
Power Supply 110V AC+/-10% 60Hz
Approx Dimensions 80mmx80mmx1235mm
Working Temperature -40C to 50C
Weight 8 Kg


Reliability:

Your new Gatekeeper brand Gate Opener will work reliably for years to come, this is a VERY heavy duty high quality opener, not like some of the cheaper models available online. Gatekeeper is one of the leading manufacturers of Gate Openers world wide , they provide a full one year warranty from manufacturers defects. You know it’s Gatekeeper, so you know it’s quality!

This opener has steel gears and uses DC power for enhanced safety!!

Compatible with Solar Power Systems!

adobe_icon

Read the User Manual here

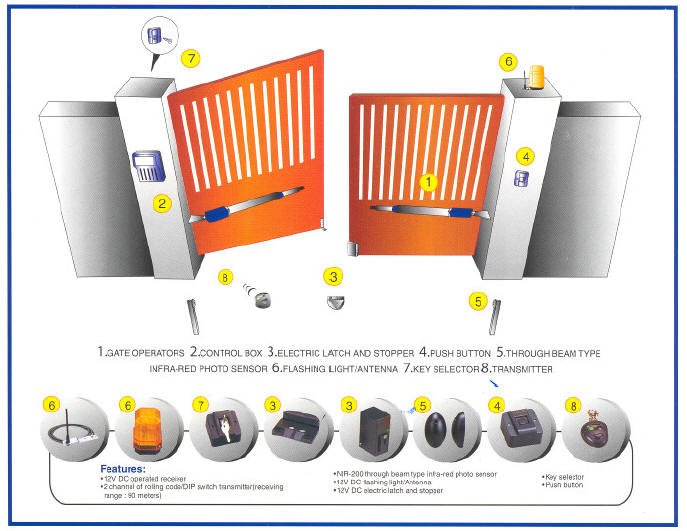

  • yg56026 2 Operator Arms
  • Control Box
  • 2 Transmitters
  • Complete Mounting Hardware
  • Electronic Lock
  • Photo Beam
  • Flashing Light
  • Key Selector
  • Push Button Switch

( Keypad Sold Separately)
